DeWALT® 7424SD1-PWR SD1 Expansion Wedge Anchor, 1/2 in Dia, 5-1/2 in OAL, 3-3/4 in L Thread, Carbon Steel, Zinc Plated
08317048
MFG #: 7424SD1-PWR
$0.00
/ Box of 50
In Stock
- Type: Expansion
- Series: SD1
- Diameter: 1/2
- Overall Length: 5-1/2
- Thread Length: 3-3/4
- Material: Carbon Steel
- Finish: Zinc Plated
- Minimum Embedment Depth: 2-1/4
- Drill Size: 1/2
- Head Type: Hex, Threaded Stud
- Thread Size: 1/2-13
- Head Style: Hex
- Thread Type: UNC
- Maximum Work Thickness: 2-3/4
- Shear Strength: 4195
- Tensile Strength: 4155, 4800
DeWALT®, 7424SD1-PWR, Expansion Wedge Anchor, Series: SD1, 1/2 in Diameter, 5-1/2 in Overall Length, 3-3/4 in Thread Length, Carbon Steel, Zinc Plated, 2-1/4 in Minimum Embedment Depth, 1/2 in Drill, 1/2-13 Thread, Threaded Stud Head, UNC Thread, 2-3/4 in Maximum Work Thickness, 4195 lb Shear Strength, 4800 lb Tensile Strength
- Consistent performan
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- Consistent performance in high and low strength concrete
- Anchor can be instal
- Nominal drill bit si
- One-piece, wrap-around clip ensures uniform holding capacity
- Nominal drill bit size is the same as the anchor diameter
- Anchor design allows
- Threaded end is chamfered for ease of starting nut

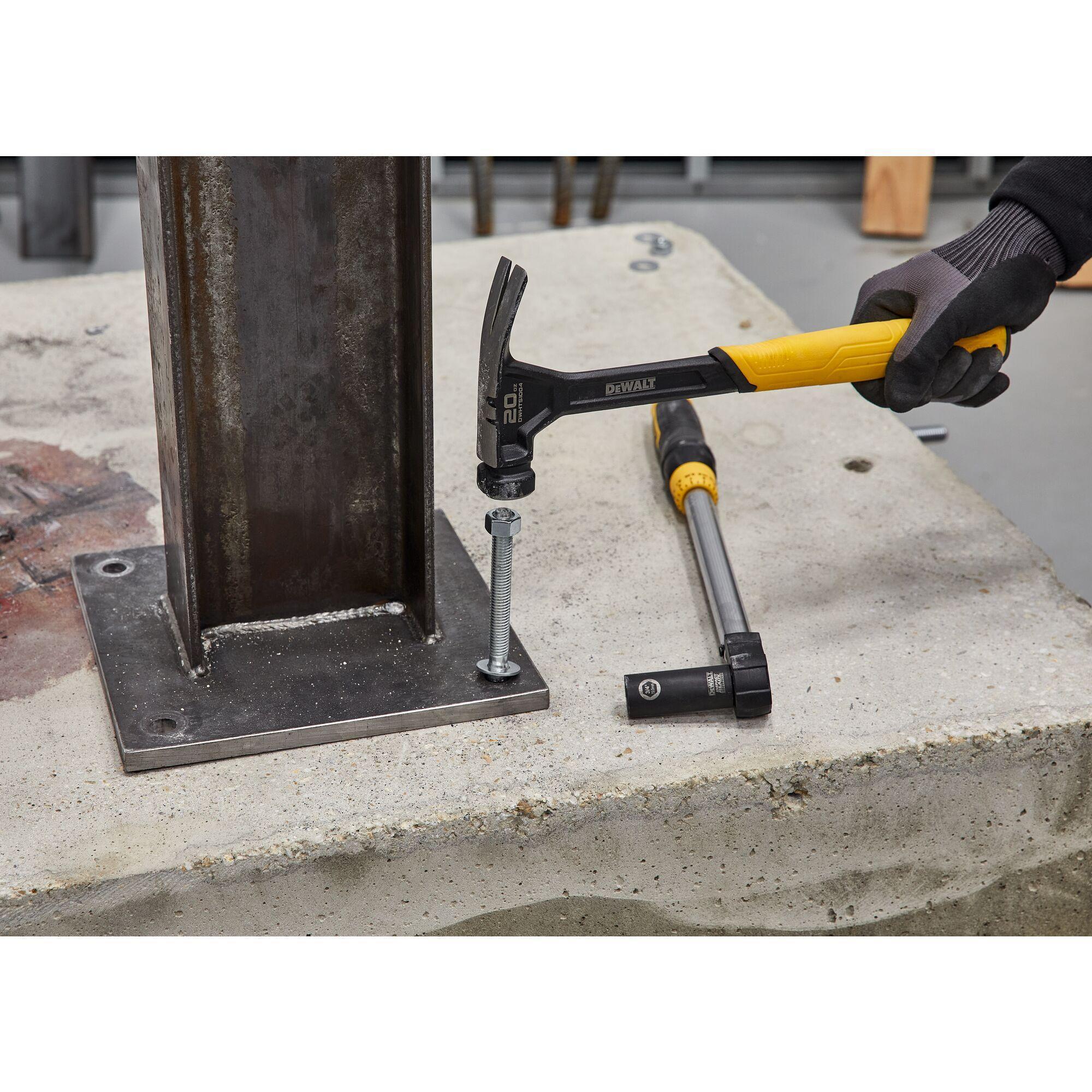

- Anchor can be installed through standard fixture holes
- Nominal drill bit di
- Available in a wide range of diameters and lengths
- Anchor design allows for follow-up expansion after setting under tensile loading

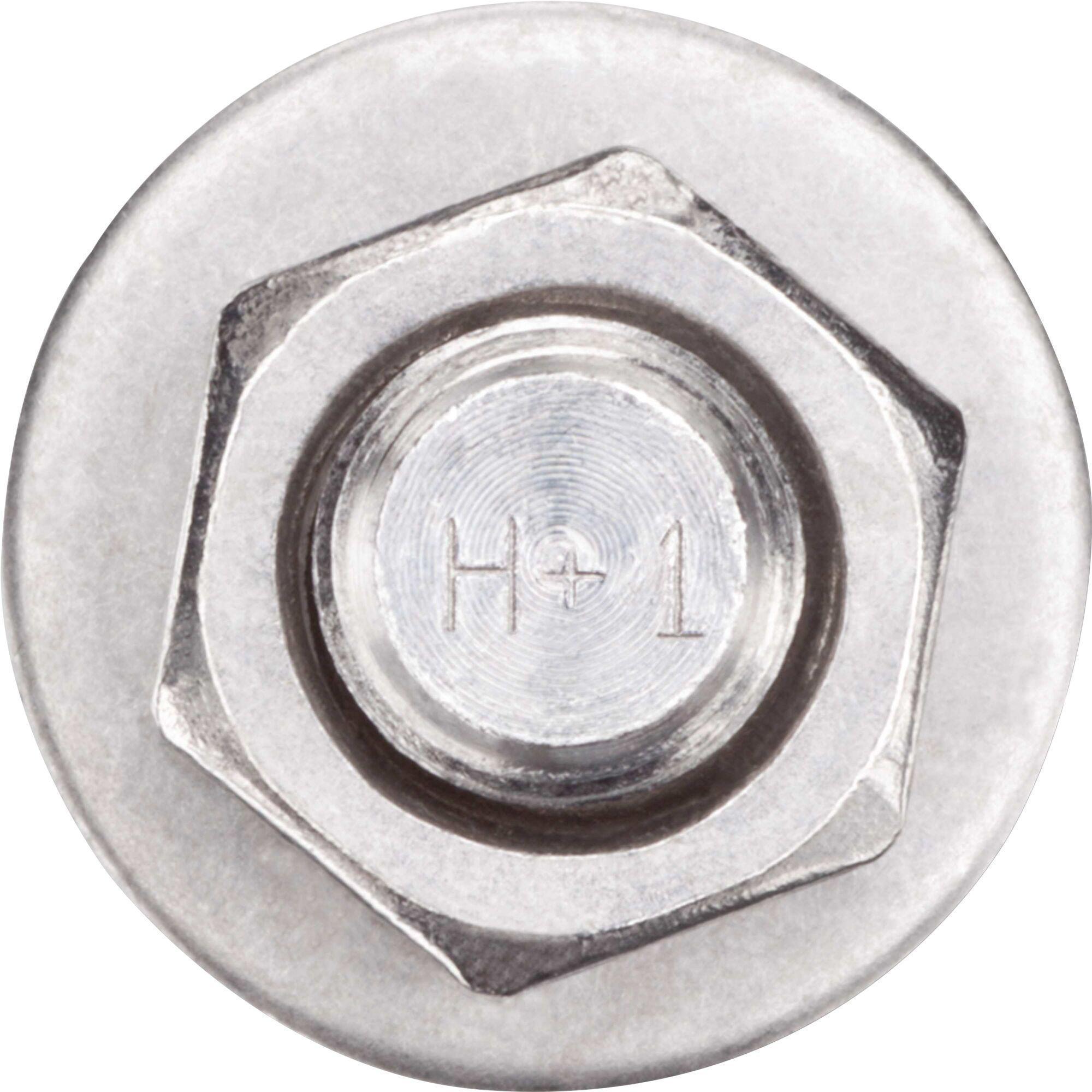

- Length ID code and i
- Carbon steel ASTM A563 grade A nut
- Length ID code and identifying marking stamped on head of each anchor
- Ultimate load capaci
- The minimum concrete thickness is 1-1/2 times the embedment depth
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate
- Normal weight concre
- The allowable loads are based on a safety factor of 4
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck an
- 9/16 in minimum fixture hole

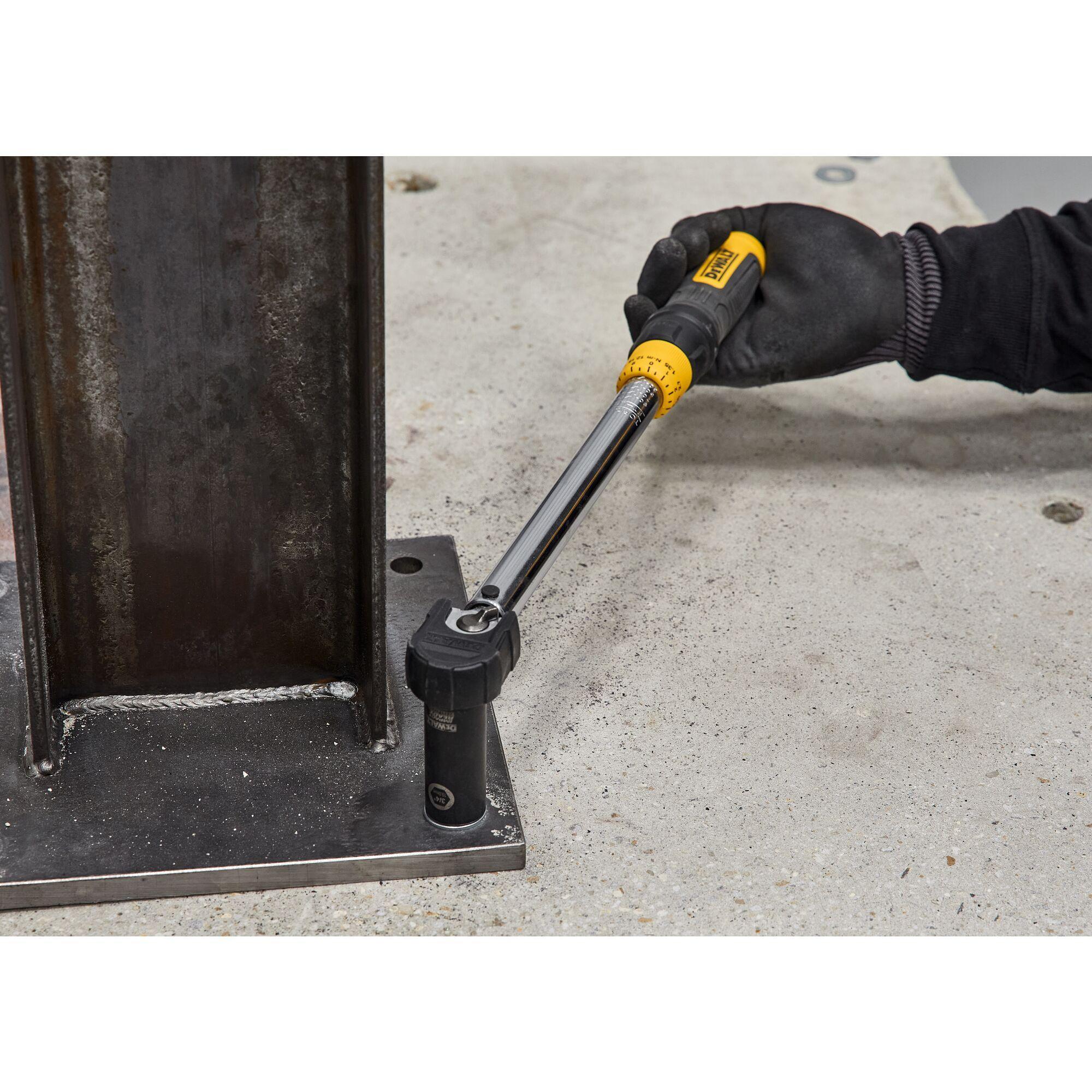

- 60 ft-lb installation torque
- 3280 lb at 2000 psi/5280 lb at 4000 psi ultimate tension loads and 820 lb at 2000 psi, 136
- 6560 lb at 2000 psi ultimate and 1345 lb at 2000 psi, 1485 lb at 3000 psi, 1625 lb at 4000
- Anchor body material meets minimum 70000 psi tensile strength
Consistent performance in high and low strength concrete
Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
Consistent performance in high and low strength concrete
Anchor can be installed through standard fixture holes
Nominal drill bit size is the same as the anchor diameter
One-piece, wrap-around clip ensures uniform holding capacity
Nominal drill bit size is the same as the anchor diameter
Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
Threaded end is chamfered for ease of starting nut
Anchor can be installed through standard fixture holes
Nominal drill bit diameter same as Anchor diameter
Available in a wide range of diameters and lengths
Anchor design allows for follow-up expansion after setting under tensile loading
Length ID code and identifying marking stamped on head of each Anchor
Carbon steel ASTM A563 grade A nut
Length ID code and identifying marking stamped on head of each anchor
Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
The minimum concrete thickness is 1-1/2 times the embedment depth
Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
The allowable loads are based on a safety factor of 4
Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
9/16 in minimum fixture hole
60 ft-lb installation torque
3280 lb at 2000 psi/5280 lb at 4000 psi ultimate tension loads and 820 lb at 2000 psi, 1360 lb at 4000 allowable tension loads for concrete
6560 lb at 2000 psi ultimate and 1345 lb at 2000 psi, 1485 lb at 3000 psi, 1625 lb at 4000 psi allowable shear loads for concrete
Anchor body material meets minimum 70000 psi tensile strength
