DeWALT® 7448SD1-PWR SD1 Expansion Wedge Anchor, 3/4 in Dia, 8-1/2 in OAL, 6 in L Thread, Carbon Steel, Zinc Plated

08396204 MFG #: 7448SD1-PWR
$0.00 / Box of 10
In Stock
DeWALT® 7448SD1-PWR SD1 Expansion Wedge Anchor, 3/4 in Dia, 8-1/2 in OAL, 6 in L Thread, Carbon Steel, Zinc Plated
  • Type: Expansion
  • Series: SD1
  • Diameter: 3/4
  • Overall Length: 8-1/2
  • Thread Length: 6
  • Material: Carbon Steel
  • Finish: Zinc Plated
  • Minimum Embedment Depth: 3-3/8
  • Drill Size: 3/4
  • Head Type: Hex, Threaded Stud
  • Thread Size: 3/4-10
  • Head Style: Hex
  • Thread Type: UNC
  • Maximum Work Thickness: 4-3/8
  • Shear Strength: 12580, 12685
  • Tensile Strength: 7860, 9075
DeWALT®, 7448SD1-PWR, Expansion Wedge Anchor, Series: SD1, 3/4 in Diameter, 8-1/2 in Overall Length, 6 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 3/4 in Drill, 3/4-10 Thread, Threaded Stud Head, UNC Thread, 4-3/8 in Maximum Work Thickness, 12580 lb Shear Strength, 9075 lb Tensile Strength
QTY
Add to List
  • Consistent performance in high and low strength concrete
  • Consistent performan
  • Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
  • Nominal drill bit size is the same as the anchor diameter
  • One-piece, wrap-arou
  • Anchor can be instal
  • Nominal drill bit si
  • One-piece, wrap-around clip ensures uniform holding capacity
  • Threaded end is cham
  • Anchor design allows
  • Threaded end is chamfered for ease of starting nut
  • Anchor can be installed through standard fixture holes
  • Nominal drill bit di
  • Anchor design allows for follow-up expansion after setting under tensile loading
  • Available in a wide
  • Available in a wide range of diameters and lengths
  • Length ID code and i
  • Carbon steel ASTM A5
  • Carbon steel ASTM A563 grade A nut

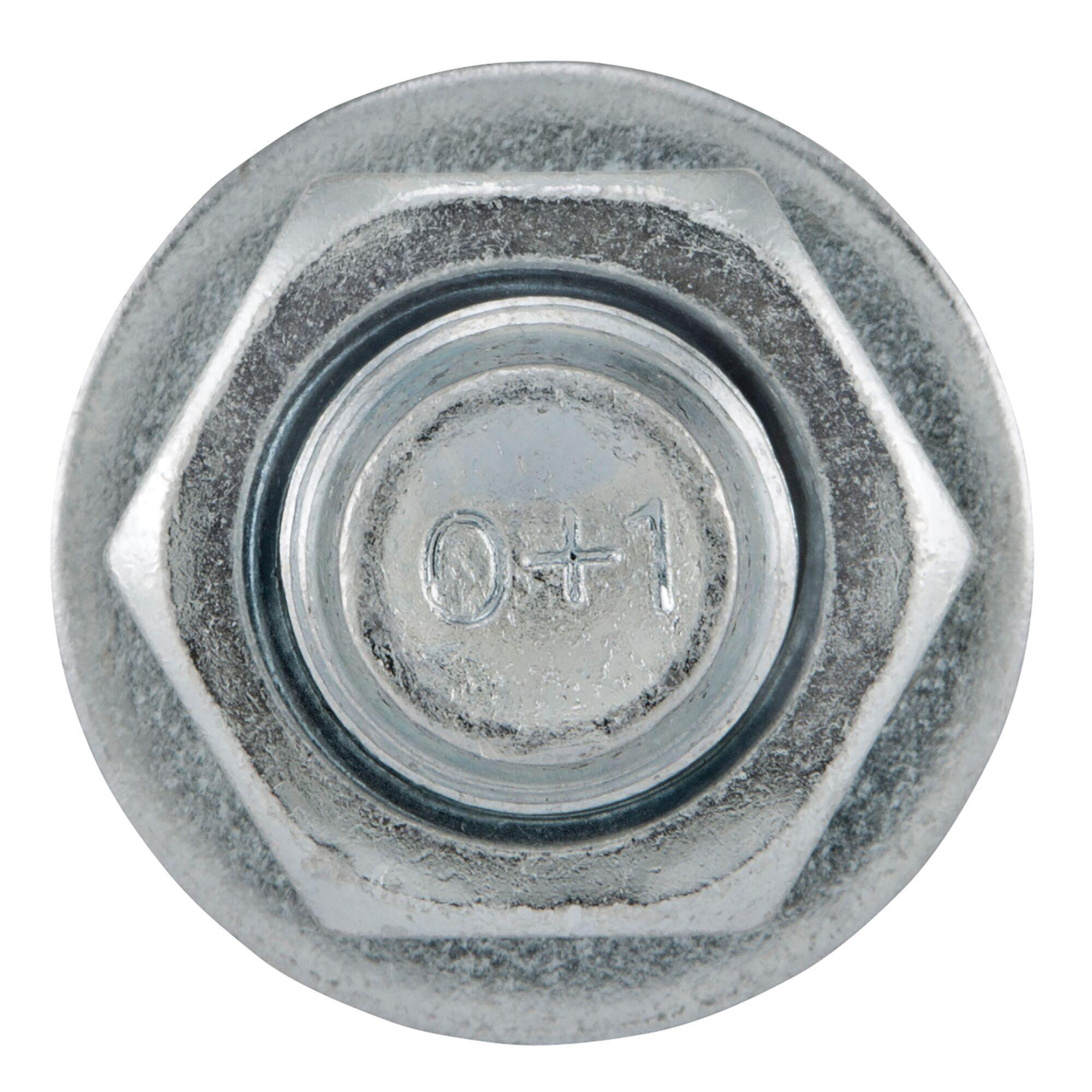

  • Length ID code and identifying marking stamped on head of each anchor
  • Anchor design allows for follow-up expansion after setting under tensile loading ultimate
  • The minimum concrete
  • The minimum concrete thickness is 1-1/2 times the embedment depth
  • Normal weight concre
  • Normal weight concrete, structural sand-light weight concrete, concrete over steel deck an
  • The allowable loads
  • The allowable loads are based on a safety factor of 4
  • 7/8 in minimum fixture hole
  • 150 ft-lb installation torque
  • 6760 lb at 2000 psi, 9960 lb at 4000 psi ultimate tension loads and 1690 lb at 2000 psi, 2
  • 11360 lb at 2000 psi ultimate shear loads and 2840 lb at 2000/3000/4000 psi for concrete
  • Anchor body material meets minimum 70000 psi tensile strength
Consistent performance in high and low strength concrete
Consistent performance in high and low strength concrete
Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
Nominal drill bit size is the same as the anchor diameter
• One-piece, wrap-around clip ensures uniform holding capacity
Anchor can be installed through standard fixture holes
Nominal drill bit size is the same as the anchor diameter
One-piece, wrap-around clip ensures uniform holding capacity
• Threaded end is chamfered for ease of starting nut
Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
Threaded end is chamfered for ease of starting nut
Anchor can be installed through standard fixture holes
Nominal drill bit diameter same as Anchor diameter
Anchor design allows for follow-up expansion after setting under tensile loading
• Available in a wide range of diameters and lengths
Available in a wide range of diameters and lengths
Length ID code and identifying marking stamped on head of each Anchor
• Carbon steel ASTM A563 grade A nut
Carbon steel ASTM A563 grade A nut
Length ID code and identifying marking stamped on head of each anchor
Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
• The minimum concrete thickness is 1-1/2 times the embedment depth
The minimum concrete thickness is 1-1/2 times the embedment depth
Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
• The allowable loads are based on a safety factor of 4
The allowable loads are based on a safety factor of 4
7/8 in minimum fixture hole
150 ft-lb installation torque
6760 lb at 2000 psi, 9960 lb at 4000 psi ultimate tension loads and 1690 lb at 2000 psi, 2090 lb at 3000 psi, 2490 lb 4000 allowable tension load psi for concrete
11360 lb at 2000 psi ultimate shear loads and 2840 lb at 2000/3000/4000 psi for concrete
Anchor body material meets minimum 70000 psi tensile strength
