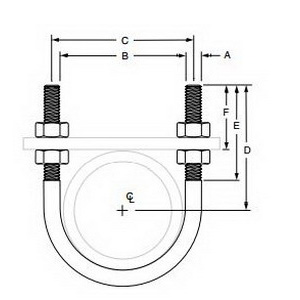

Anvil® 0500017090 FIG 137 Standard U-Bolt, 3-1/2 in Pipe, 1/2 in Dia - Thread, Carbon Steel
09900704
MFG #: 0500017090
$0.00
/ Each
In Stock
- Type: Standard
- Series: FIG 137
- Measurement System: Imperial
- Diameter - Thread Size: 1/2
- Inside Width: 4-1/16
- Material: Carbon Steel
- Thread Length: 3
- Pipe Size: 3-1/2
- Tensile Strength: 2700
Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 1/2 in, 4-1/16 in Inside Width, Carbon Steel, 3 in Thread Length, 3-1/2 in Pipe, 2700 lb Tensile
- Recommended for supp
- For support or guide of heavy loads often employed in power, process plant and marine serv
- For support or guide
- 675 lb side load at 650 deg F
- 675 lb side load at
- 2700 lb normal load at 650 deg F, 2114 lb normal load at 750 deg F
- 2700 lb normal load
Recommended for support, or guide of heavy loads; often employed in power, process plant and marine service.
For support or guide of heavy loads often employed in power, process plant and marine service
For support or guide of heavy loads often employed in power, process plant and marine service
675 lb side load at 650 deg F
675 lb side load at 650 deg F
2700 lb normal load at 650 deg F, 2114 lb normal load at 750 deg F
2700 lb normal load at 650 deg F, 2114 lb normal load at 750 deg F
