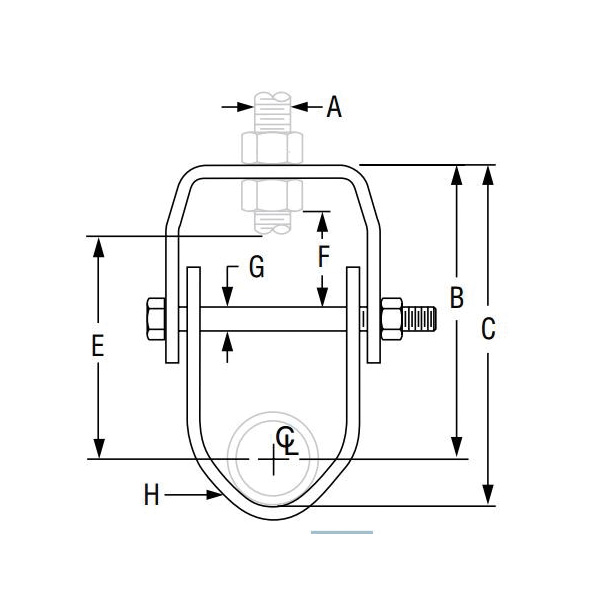

Anvil® 0500173018 FIG 260 Adjustable Clevis Hanger, 1/2 in Pipe, 3/8 in Rod, 610 lb Load, Carbon Steel, Plain

27712042 MFG #: 0500173018
$0.00 / Each
Item currently not in stock. Lead time based upon availability from the manufacturer.
Anvil® 0500173018 FIG 260 Adjustable Clevis Hanger, 1/2 in Pipe, 3/8 in Rod, 610 lb Load, Carbon Steel, Plain
  • Type: Adjustable
  • Series: FIG 260
  • Pipe Size: 1/2
  • Rod Size: 3/8
  • Load Capacity: 610
  • Material: Carbon Steel
  • Finish: Plain
  • Temperature Rating: 650
Anvil® Clevis Hanger, Adjustable, Series: FIG 260, 1/2 in Pipe, 3/8 in Rod, 610 lb, Carbon Steel, Plain, 650 deg F
QTY
Add to List
  • Hanger load nut abov
  • Hanger load nut above clevis must be tightened securely to assure proper hanger performanc
  • Vertical adjustment
  • Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varyin
  • Tighten upper nut af
  • Tighten upper nut after adjustment
  • Design has yoke on o
  • Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, th
  • Sizes 5 in and up ha
  • Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis r
Hanger load nut above clevis must be tightened securely to assure proper hanger performance
Hanger load nut above clevis must be tightened securely to assure proper hanger performance
Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
Tighten upper nut after adjustment
Tighten upper nut after adjustment
Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
