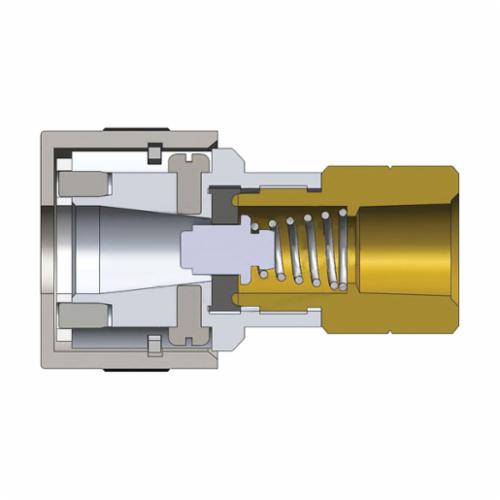

Dixon® 2SHDF2 SHD Automatic Schrader Interchange Twist-Lock Coupler, 1/4 in x 1/4-18 Nominal, Quick Disconnect Coupler x FNPT, 300 psi Pressure, Aluminum/Steel
10822002
MFG #: 2SHDF2
$0.00
/ Each
Item currently not in stock. Lead time based upon availability from the manufacturer.
- Dimensions: 1.12 in OD
- End Style: Quick Disconnect Coupler x FNPT
- Hex Size: 11/16
- Length: 2.1
- Material: Aluminum/Steel
- Nominal Size: 1/4 in x 1/4-18
- Pressure Rating: 300
- Series: SHD
- Temperature Rating: -40 to 250
- Type: Automatic Schrader Interchange
Dixon® Twist-Lock Coupler, Automatic Schrader Interchange, Series: SHD, 1/4 in x 1/4-18 Nominal, Quick Disconnect Coupler x FNPT End Style, 11/16 in Hex, 2.1 in Length, 300 psi Pressure, -40 to 250 deg F, Aluminum/Steel, 1.12 in OD
- Machined components
- Stainless steel ball
- Nitrile seals are st
- Sleeves are construc
- Adapter components a
Machined components are manufactured using solid bar stock
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
Nitrile seals are standard
Sleeves are constructed of steel
Adapter components are constructed of brass
