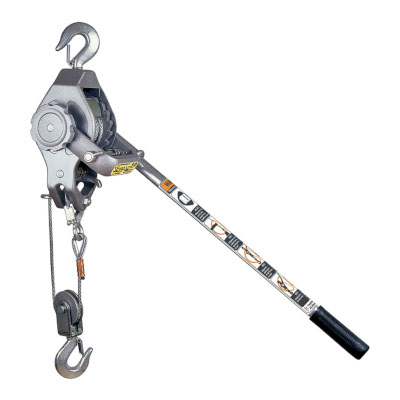

All Material Handling C3400-3H Cable Puller, 7 in x 17 in/22 in, Lightweight Aluminum Frame, Galvanized Wire Rope, Alloy Steel Load Hooks, Spring Steel Drum Shield, Silver, 1700 @ 1 Fall, 3400 lb @ 2 Fall WLL
03034003
MFG #: C3400-3H
$0.00
/ Each
Item currently not in stock. Lead time based upon availability from the manufacturer.
- Type: Cable Puller
- Pulling Capacity: 1700 lb (1 Fall) 3400 lb (2 Falls)
- Cable Length: 20 ft
- Cable Diameter: 1/4 in
- Minimum Between Hooks: 17 in
- Hook Opening: 0.94 in
- Handle Length: 25 in
3 hook design allows 1 or 2 part rigging to adjust for capacity or lift. AMH Ratcheting cable pullers are crafted with galvanized wire rope, stainless springs, and plated externals for corrosion resistance.
- 3 Hook design allows 1 or 2 part rigging for a choice of capacity and lift
- Galvanized aircraft quality wire rope, stainless springs and plated external parts for cor
- C3400 has an overload indicating reversible handle that changes position easily, so pull i
- Safety Latches on alloy steel load hooks
- “One notch at a time” ratchet and pawl lowering for precise load control
- Spring steel drum shield helps protect and spool cable evenly on drum
3 Hook design allows 1 or 2 part rigging for a choice of capacity and lift
Galvanized aircraft quality wire rope, stainless springs and plated external parts for corrosion resistance
C3400 has an overload indicating reversible handle that changes position easily, so pull is always possible in the right direction against the load. The handle on the C3400 bends noticeably when overloaded
Safety Latches on alloy steel load hooks
“One notch at a time” ratchet and pawl lowering for precise load control
Spring steel drum shield helps protect and spool cable evenly on drum
