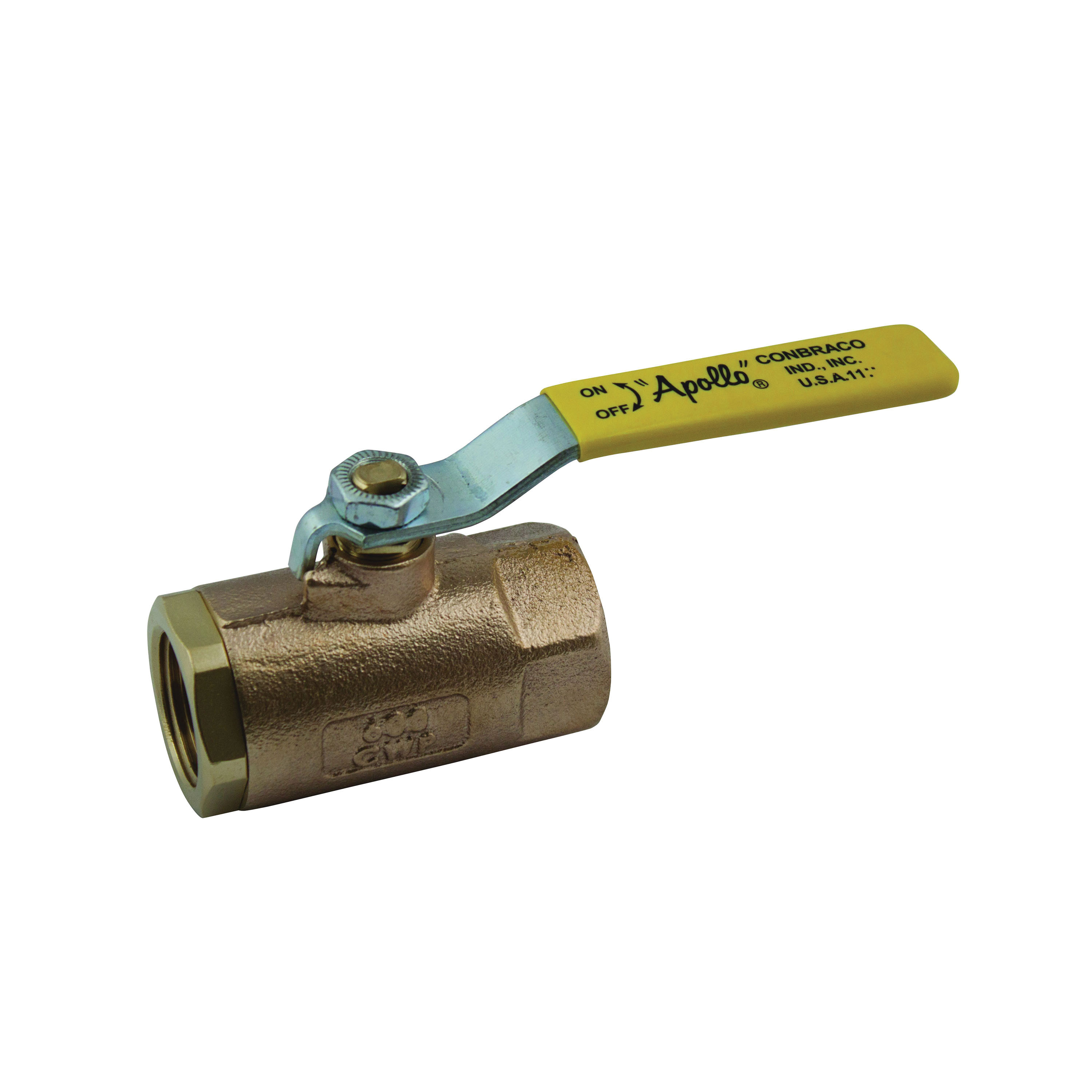

Apollo™ 70143E1 70-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE/MPTFE Softgoods, Domestic
23119839
MFG #: 70143E1
$0.00
/ Each
In Stock
- Type: 2-Piece
- Series: 70-140
- Nominal Size: 1/2
- End Style: FNPT
- Pressure Rating: 600 psi CWP
- Temperature Rating: 500
- Port Type: Standard
- Actuator Type: Latch-Lock Lever
- Ball Material: 316 Stainless Steel
- Inlet to Outlet Length: 2.17
- Top to Inlet Center: 1-3/4
- Body Material: Bronze
- Trim Material: 316 Stainless Steel Stem and RPTFE Seat, 316 Stainless Steel Stem/RPTFE Seat
- Softgoods Material: PTFE Seal and MPTFE Stem Packing, PTFE/MPTFE
- Domestic/Import: Domestic
Apollo™, 70143E1, Ball Valve, 2-Piece, Series: 70-140, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 2.17 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem/RPTFE Seat Trim, PTFE/MPTFE Softgoods, Domestic
- 23119839-1(URL)
- 23119839-2(URL)
- 23119839-3(URL)
- 23119839-5(URL)
- Apollo_70-100-14_Catalog.pdf(FILE)
- Apollo_70-100-14_Catalog_1.pdf(FILE)
- Apollo_70-100-14_Instruction_Installation.pdf(FILE)
- Apollo_70-100-14_Manual.pdf(FILE)
- Apollo_70-100-14_Warranty.pdf(FILE)
- Apollo_Conbraco_7010014_Data_Sheet.pdf(FILE)
- Apollo_Conbraco_7010014_Specification_Sheet.pdf(FILE)
- Stainless steel latch-lock lever and nut
- Stainless steel latc
- 250 lb steam trim (MPTFE seat and packing)
- 250 lb steam trim (M
- Premium materials and heavy duty construction
- Premium materials an
- Adjustable stem packing gland
- Adjustable stem pack
- Blow-out proof stem
- Blow-out proof stem
- 100% factory tested
- 100% factory tested
- Vacuum service to 29 in Hg
- Vacuum service to 29
- 150 psig saturated steam
- 150 psig saturated s
- Cold non-shock
- Cold non-shock
- PTFE seal and MPTFE stem packing
Stainless steel latch-lock lever and nut
Stainless steel latch-lock lever and nut
250 lb steam trim (MPTFE seat and packing)
250 lb steam trim (MPTFE seat and packing)
Premium materials and heavy duty construction
Premium materials and heavy duty construction
Adjustable stem packing gland
Adjustable stem packing gland
Blow-out proof stem
Blow-out proof stem
100% factory tested
100% factory tested
Vacuum service to 29 in Hg
Vacuum service to 29 in Hg
150 psig saturated steam
150 psig saturated steam
Cold non-shock
Cold non-shock
PTFE seal and MPTFE stem packing
